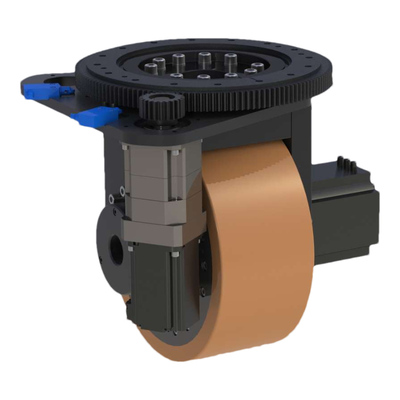

PhoenixPower PH350DS Series Horizontal Drive Wheel

产品能力范围:
Wheel diameter 350mm
Vertical load 4500kg
Driving wheel power 3000W-6000W
Driving wheel torque MAX:2500N.m
Driving wheel speed 0-10km/h
Driving wheel speed ratio 16-40
Steering motor power 100W-200W
Configurable motor type All types
B2伺服48V4000W

B2标准伺服款配置   型号:PH350DS-B2-002-00

驱动单元
行走电机

inagv伺服电机


行走电机IP等级IP65
行走电机自出线长动力0.1m/编码器0.1m
行走电机动力延长线PN-MOT-1100-*
行走电机制动器
行走电机制动器延长线 PN-BRA-*
行走电机编码器内置增量式2500线
行走电机编码器延长线PN-ENC-*
包胶轮聚氨酯350*150mm
驱动轮额定速度
驱动轮速比
转向单元
转向电机

inagv伺服电机


转向电机IP等级IP65
转向电机自出线长动力0.5m/编码器0.5m
转向电机动力延长线PL-MOT-200-*
转向电机编码器内置多圈绝对值17bit
转向电机编码器延长线PL-ENC-*
最大转向速度
转向减速机速比
转向机构速比
电子限位
机械限位
零位开关
驱动器
行走电机驱动器inagv伺服驱动器 -
行走电机驱动器通讯线PL-COM-1.0
转向电机驱动器inagv伺服驱动器 -
转向电机驱动器通讯线PL-COM-1.0
驱动器调试线PL-PC-1.0
其他
产品减震机构-
产品耐温范围耐低温-20℃
产品防爆-
安全编码器-
工作制S2
单舵轮额定垂直负载
单舵轮最大牵引重量
双舵轮最大牵引重量

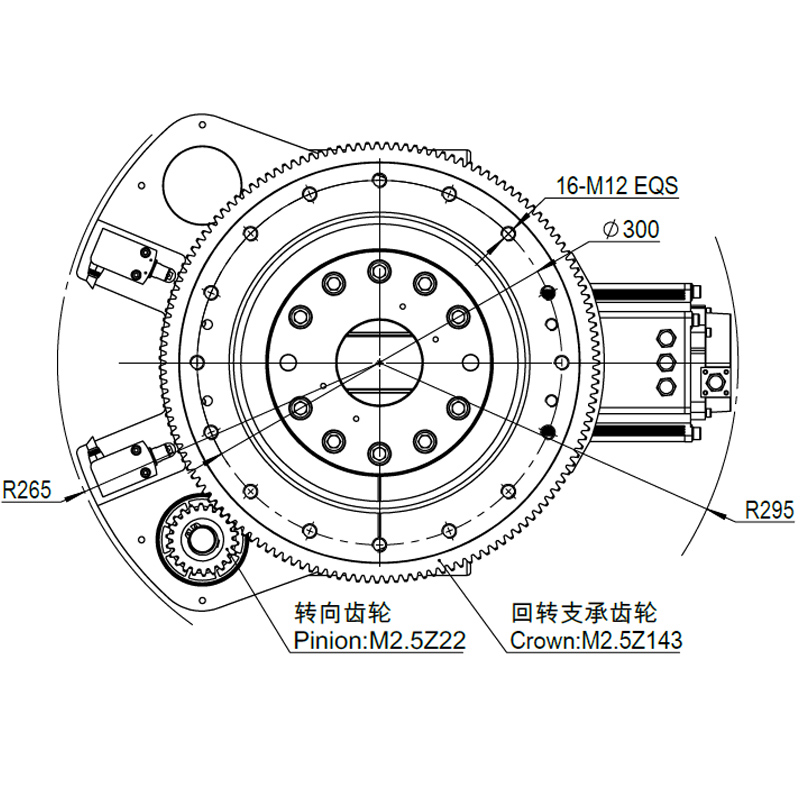

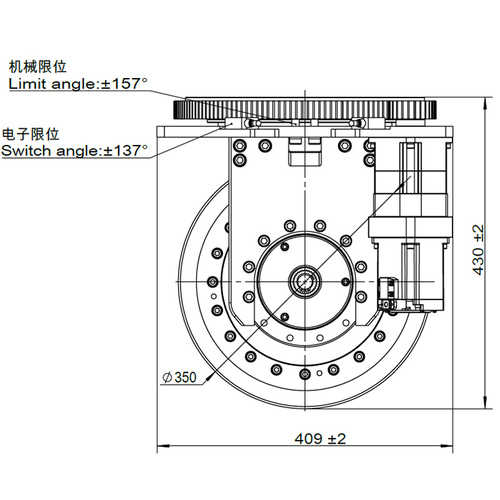

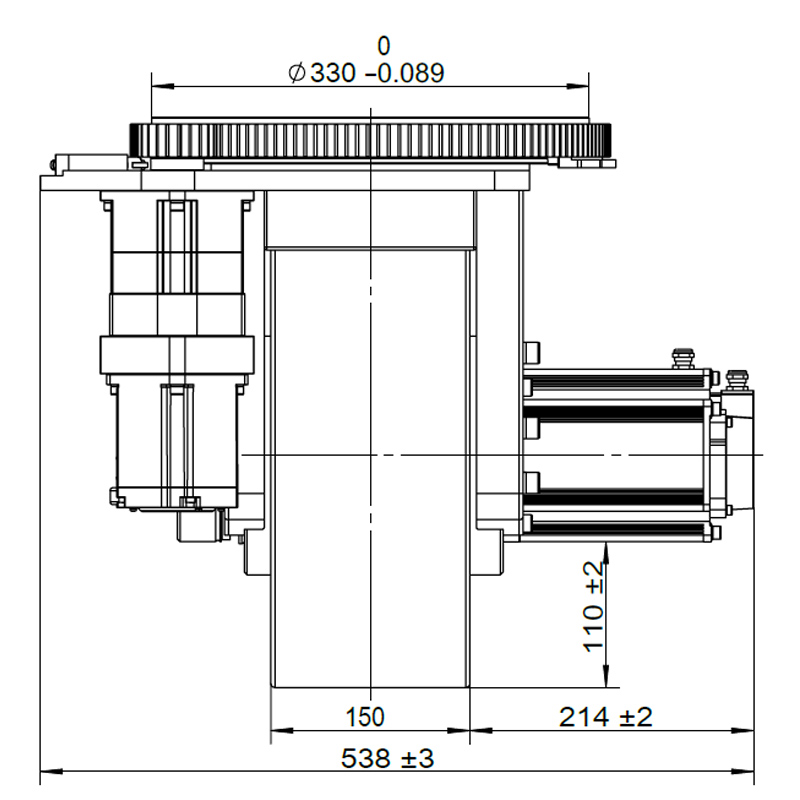

舵轮安装尺寸如图

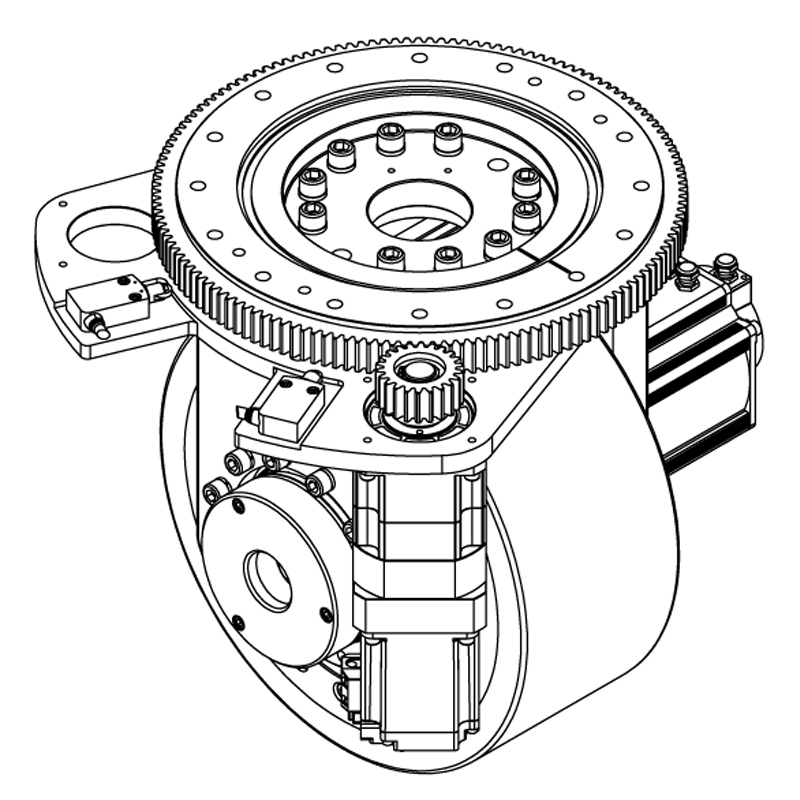

B2标准伺服款总成图
