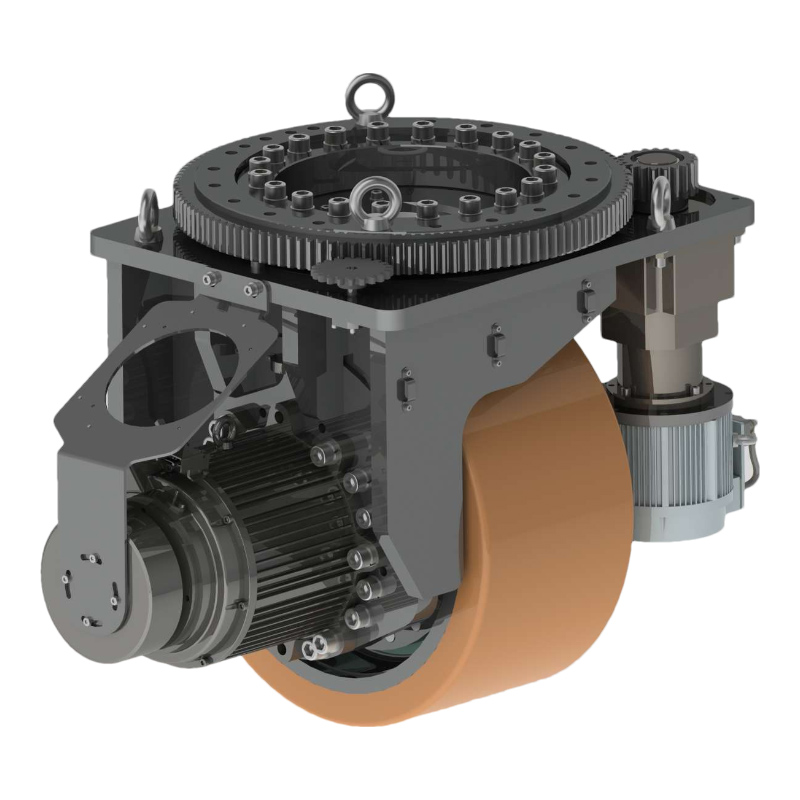

PhoenixPower PH600DS Series Horizontal Steering Wheel

产品能力范围:
Wheel diameter 600mm
Vertical load 15000kg
Driving wheel power 9000W-20000W
Driving wheel torque MAX:12000N.m
Driving wheel speed 0-10km/h
Driving wheel speed ratio 16-128
Steering motor power 2500W-5000W
Configurable motor type All types
A1异步交流52V12000W

A1标准交流异步款配置   型号:PH600DS-A1-004-01

驱动单元
行走电机

inagv交流异步电机

52V12000W51.57N.m2222rpm

行走电机IP等级IP54
行走电机自出线长-
行走电机动力延长线PP-MOT-12000-*
行走电机制动器外置24VDC150N.m-35
行走电机制动器延长线 PP-BRA-*
行走电机编码器内置增量式64ppr
行走电机编码器延长线PP-ENC-*
包胶轮聚氨酯600*300mm
驱动轮额定速度51.04m/min
驱动轮速比i=82.02
转向单元
转向电机

inagv交流异步电机

52V2500W9.55N.m2500rpm

转向电机IP等级IP54
转向电机自出线长-
转向电机动力延长线PP-2500-*
转向电机编码器内置增量式256ppr
转向电机编码器延长线PP-ENC-*
最大转向速度20°/sec
转向减速机速比 i=125
转向机构速比 i=6
电子限位 ±120°预留孔位
机械限位±145°
零位开关-
驱动器
行走电机驱动器inagv伺服驱动器 -
行走电机驱动器通讯线-
转向电机驱动器inagv伺服驱动器 -
转向电机驱动器通讯线-
驱动器调试线-
其他
产品减震机构-
产品耐温范围耐低温-20℃
产品防爆-
安全编码器-
工作制S2
单舵轮额定垂直负载20000kg
单舵轮最大牵引重量40000kg
双舵轮最大牵引重量64000kg

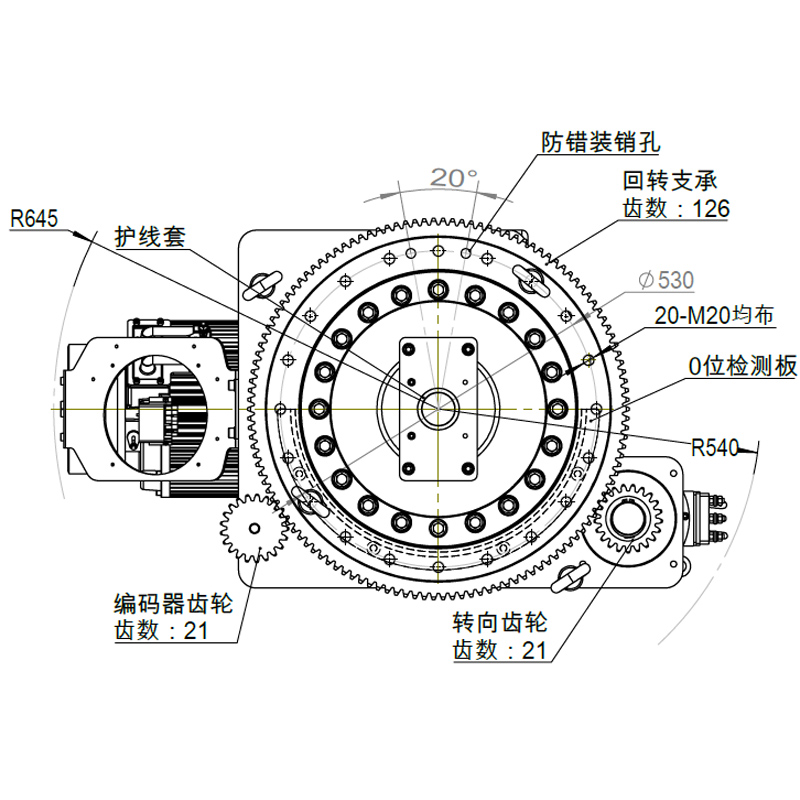

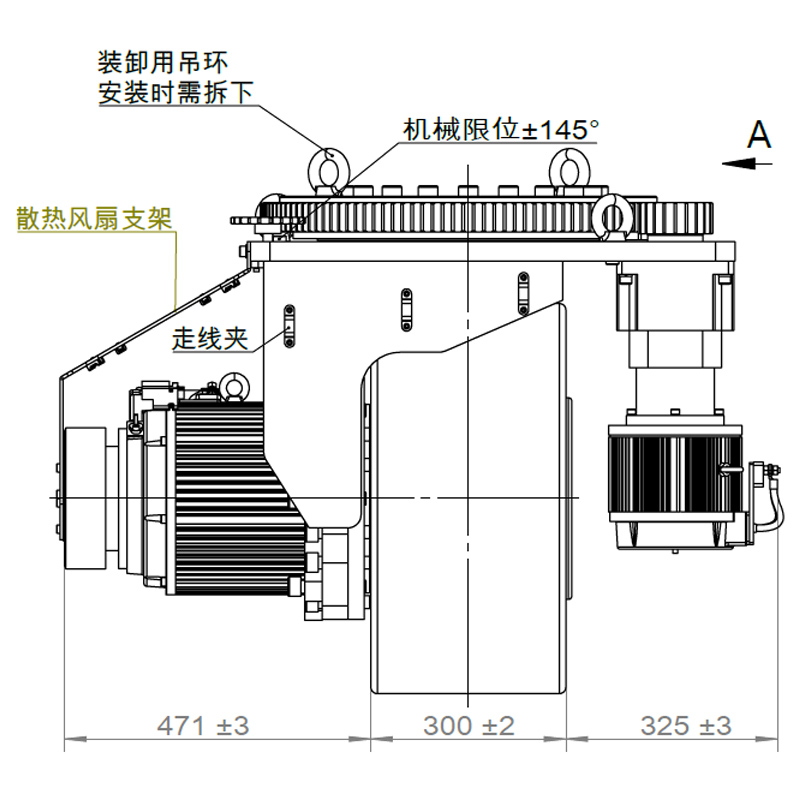

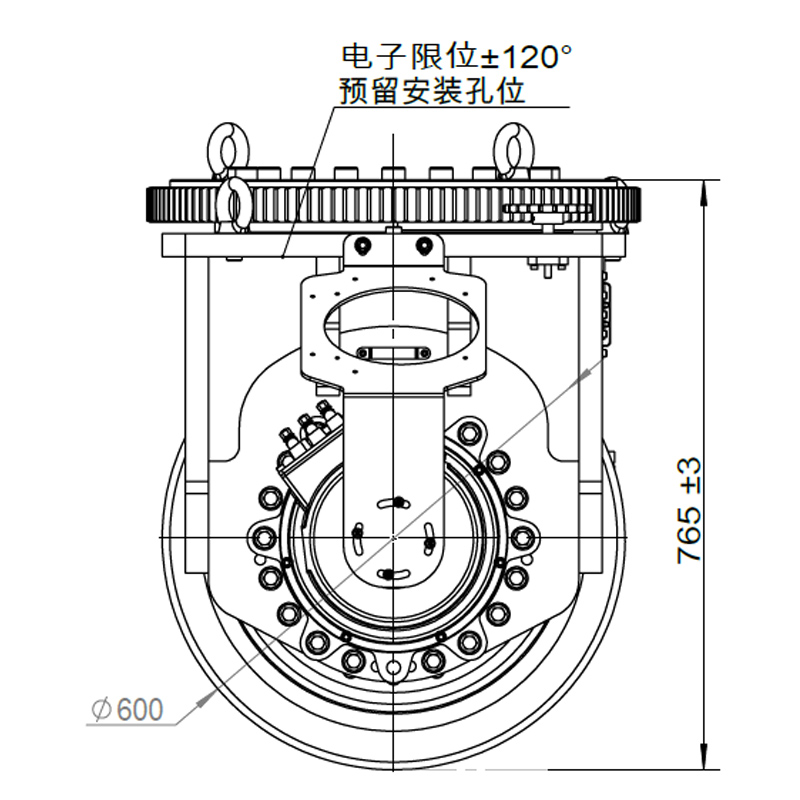

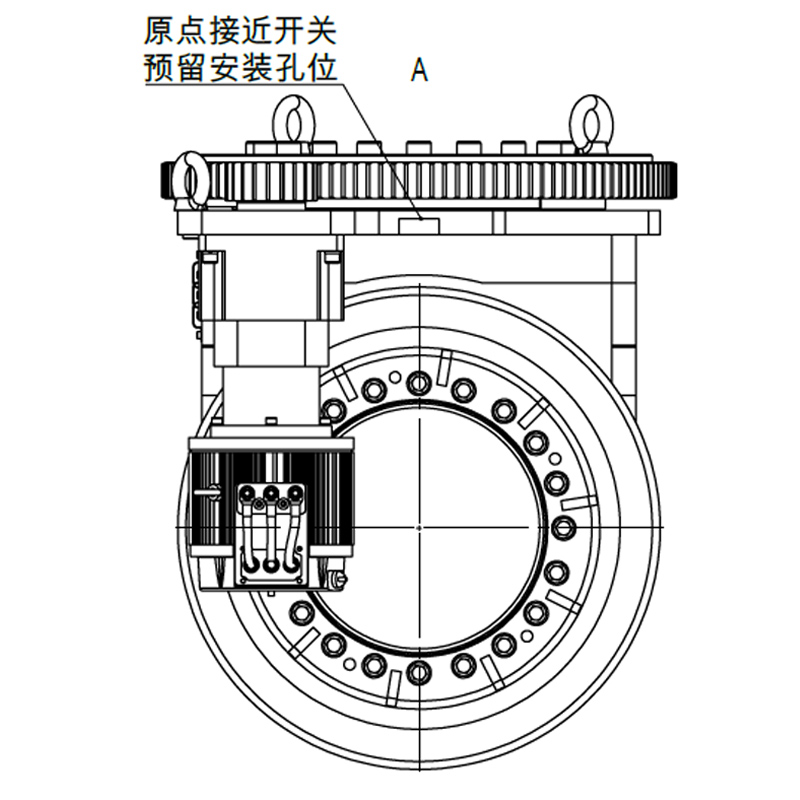

舵轮安装尺寸如图

A1标准交流异步款总成图
