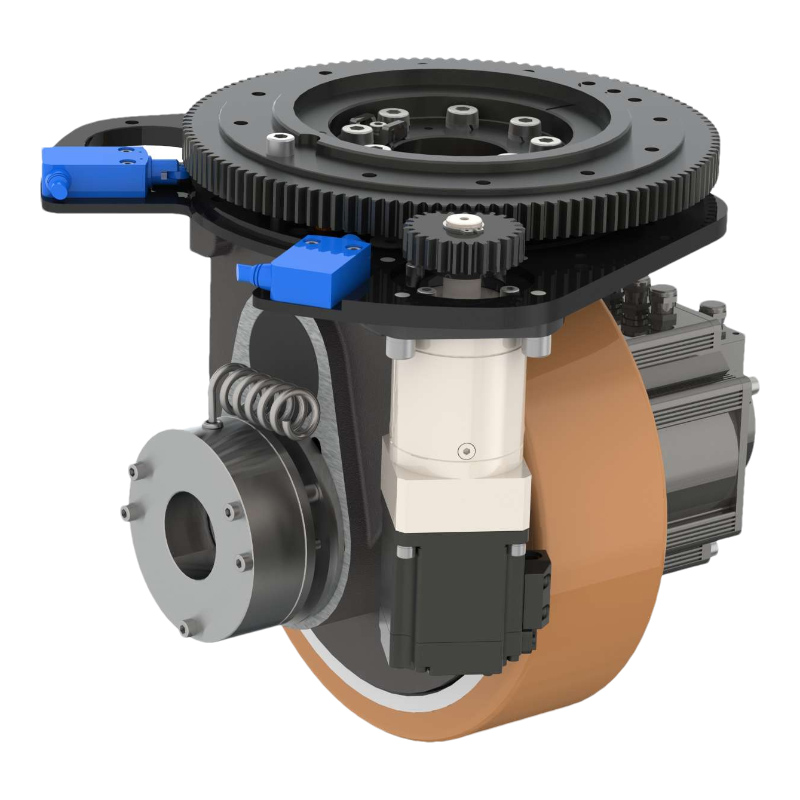

PhoenixPower PH250DS Series Horizontal Steering Wheel

产品能力范围:
Wheel diameter 250mm
Vertical load 1175kg
Driving wheel power 1000W-2500W
Driving wheel torque MAX=450N.m
Driving wheel speed 0-10km/h
Driving wheel speed ratio 17-32
Steering motor power 200W-400W
Configurable motor type All types
A3伺服款48V1570W

A3标准伺服款配置   型号:PH250DS-A3-057-10

驱动单元
行走电机

inagv伺服电机 PVMN15416M3H1-L25-S30-1A

48V1570W5N.m3000rpm

行走电机IP等级IP65
行走电机自出线长动力0.1m/编码器0.1m
行走电机动力延长线PN-MOT-1570-*
行走电机制动器外置24VDC8N.m25W-14
行走电机制动器延长线 PN-BRA-*
行走电机编码器内置增量式2500线
行走电机编码器延长线PN-ENC-*
包胶轮聚氨酯250*80mm
驱动轮额定速度73.59m/min
驱动轮速比i=32
转向单元
转向电机

inagv伺服电机 PVML06002H3H3-M17

48V200W0.64N.m3000rpm

转向电机IP等级IP65,轴端IP54
转向电机自出线长动力0.5m/编码器0.5m
转向电机动力延长线PL-MOT-200-*
转向电机编码器内置多圈绝对值17bit
转向电机编码器延长线PL-ENC-*
最大转向速度90°/sec
转向减速机速比 i=40
转向机构速比 i=5
电子限位 ±125°行程开关XCMN2102L1
机械限位±145°
零位开关-
驱动器
行走电机驱动器inagv伺服驱动器 PLD2L-CAN7040B
行走电机驱动器通讯线PL-COM-1.0
转向电机驱动器inagv伺服驱动器 PLD2L-CAN7010B
转向电机驱动器通讯线PL-COM-1.0
驱动器调试线PL-PC-1.0
其他
产品减震机构-
产品耐温范围耐低温-20℃
产品防爆-
安全编码器-
工作制S2
单舵轮额定垂直负载1000kg
单舵轮最大牵引重量4000kg
双舵轮最大牵引重量6400kg

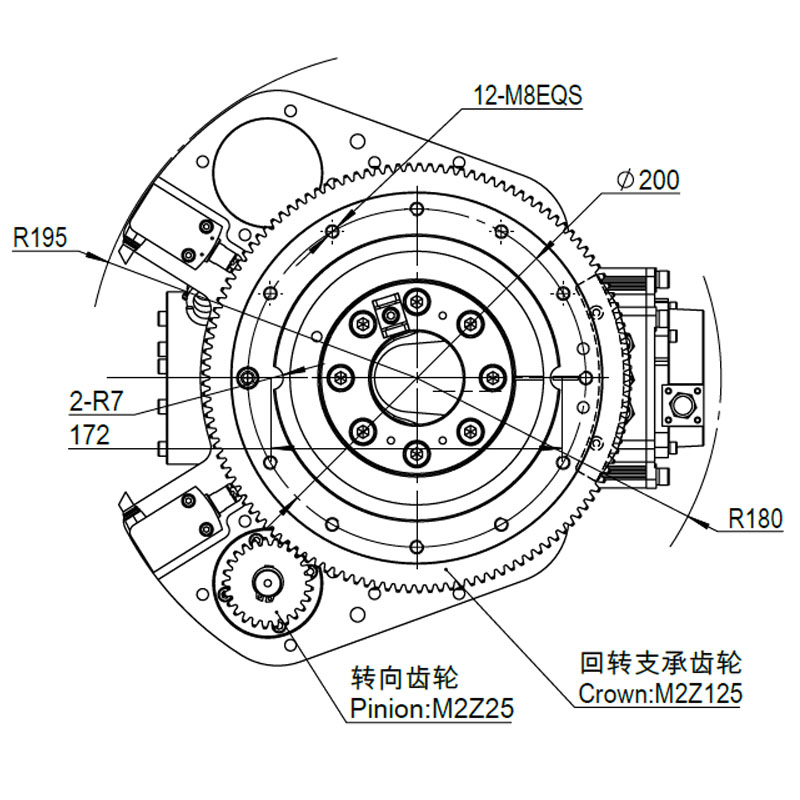

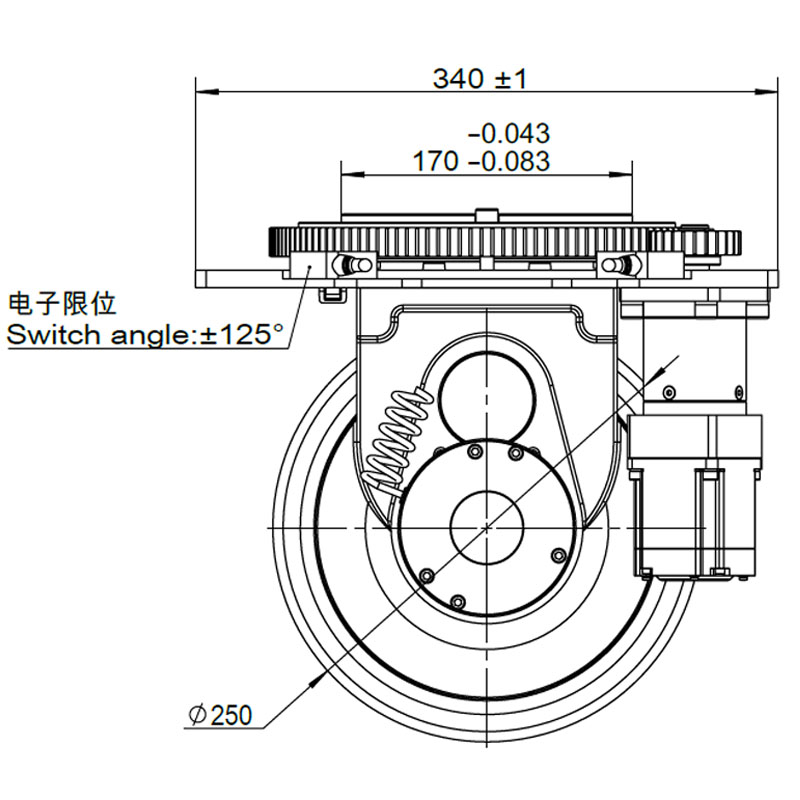

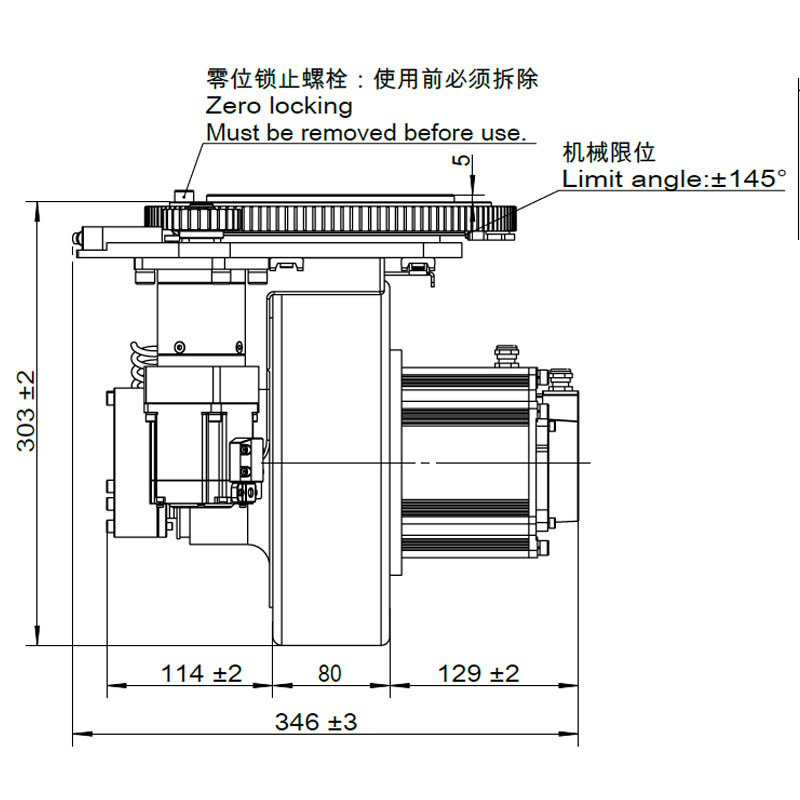

舵轮安装尺寸如图

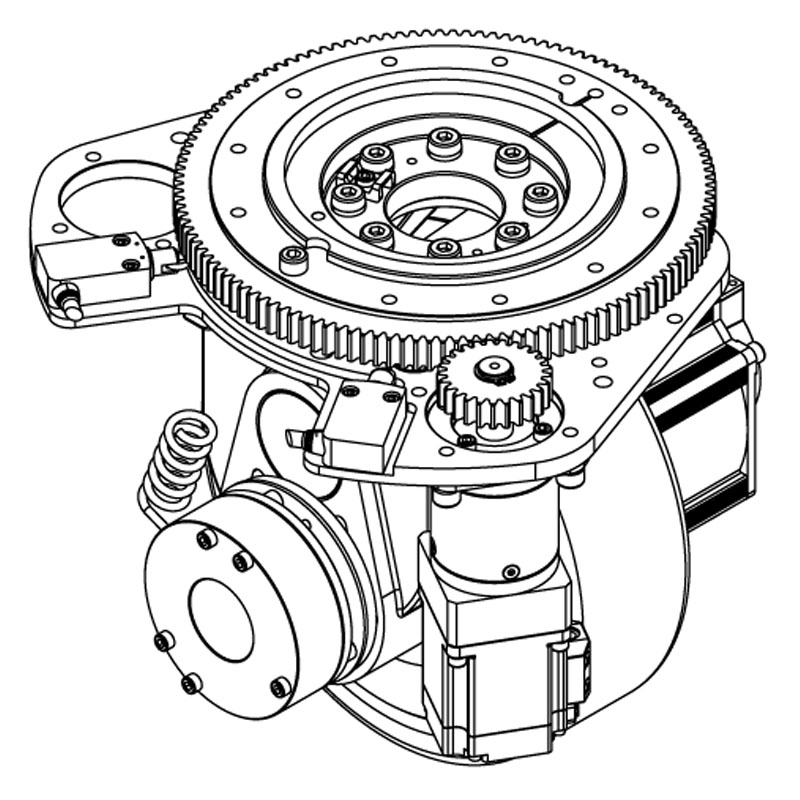

A3标准伺服款总成图
