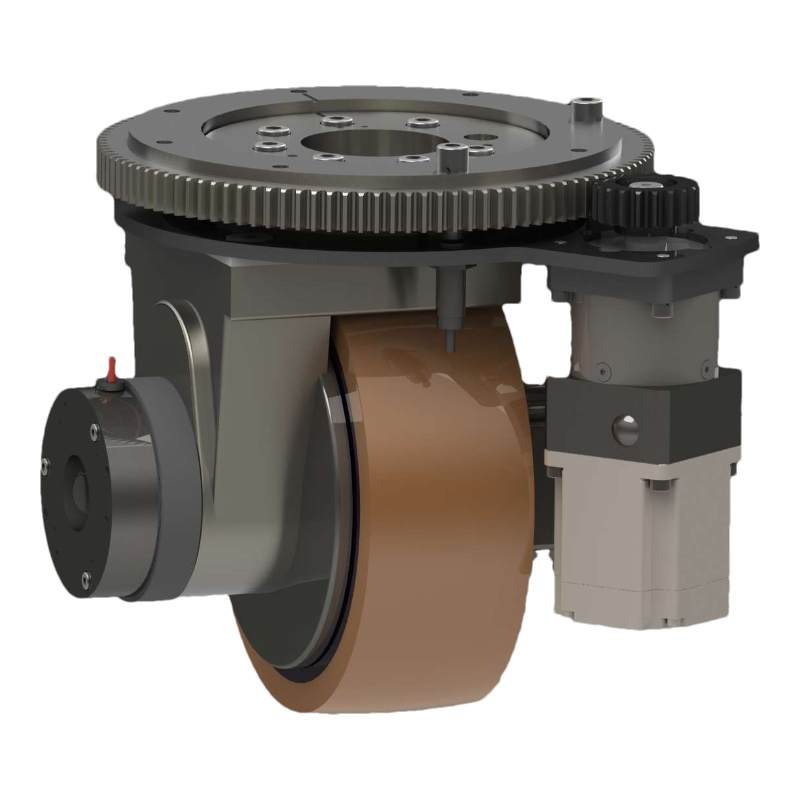

PhoenixPower PH190DS Series Horizontal Steering Wheel

产品能力范围:
Wheel diameter 190mm
Vertical load 900kg
Driving wheel power 750W-1000W
Driving wheel torque MAX=210N.m
Driving wheel speed 0-5km/h
Driving wheel speed ratio 20
Steering motor power 100W-200W
Configurable motor type All types
A3伺服48V750W

A3标准伺服款配置   型号:PH190DS-A3-002-00

驱动单元
行走电机

inagv伺服电机 PVML08008H3H3-M17

48V750W2.39N.m3000rpm

行走电机IP等级IP65
行走电机自出线长动力0.5m/编码器0.5m
行走电机动力延长线PL-MOT-750-*
行走电机制动器外置24VDC6N.m21W-15
行走电机制动器延长线PL-BRA-*
行走电机编码器内置多圈绝对值17bit
行走电机编码器延长线PL-ENC-*
包胶轮聚氨酯190*70mm
驱动轮额定速度89.49m/min
驱动轮速比i=20
转向单元
转向电机

inagv伺服电机 PVML06002H3H3-M17

48V200W0.64N.m3000rpm

转向电机IP等级IP65
转向电机自出线长动力0.5m/编码器0.5m
转向电机动力延长线PL-MOT-200-*
转向电机编码器内置多圈绝对值17bit
转向电机编码器延长线PL-ENC-*
最大转向速度327.27°/sec
转向减速机速比i=10
转向机构速比i=5.5
电子限位±142°接近开关NPN常闭
机械限位±170°
零位开关
驱动器
行走电机驱动器inagv伺服驱动器 -
行走电机驱动器通讯线PL-COM-1.0
转向电机驱动器inagv伺服驱动器 -
转向电机驱动器通讯线PL-COM-1.0
驱动器调试线PL-PC-1.0
其他
产品减震机构-
产品耐温范围耐低温-20℃
产品防爆-
安全编码器-
工作制S1
单舵轮额定垂直负载1000kg
单舵轮最大牵引重量1500kg
双舵轮最大牵引重量2400kg

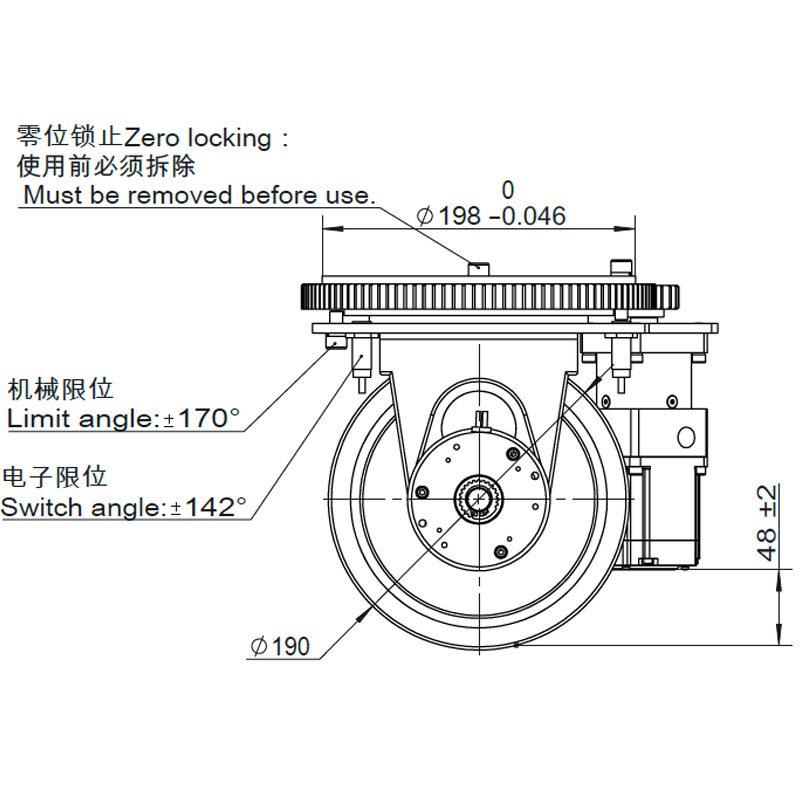

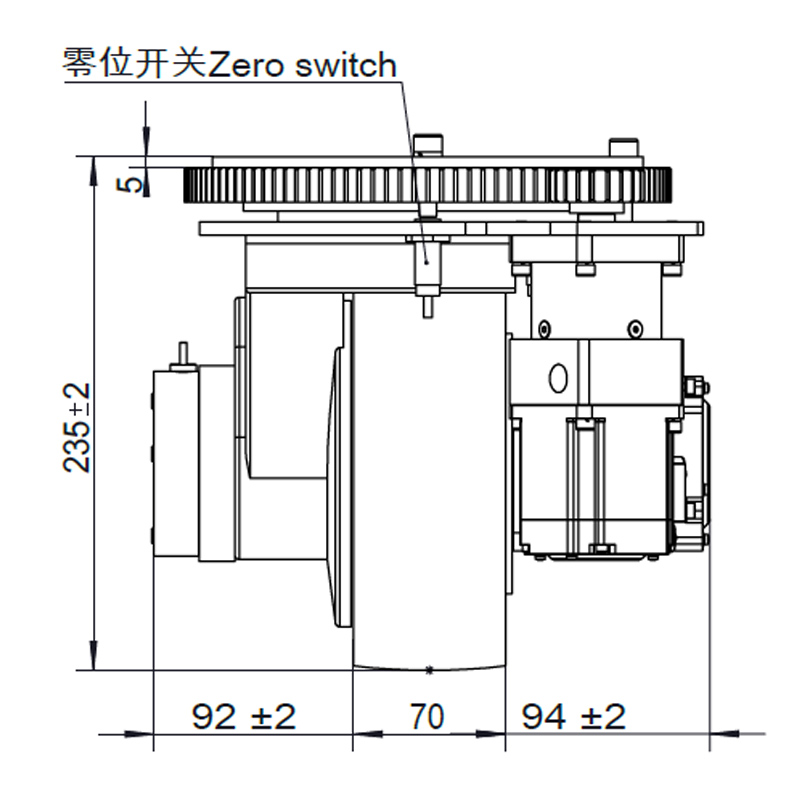

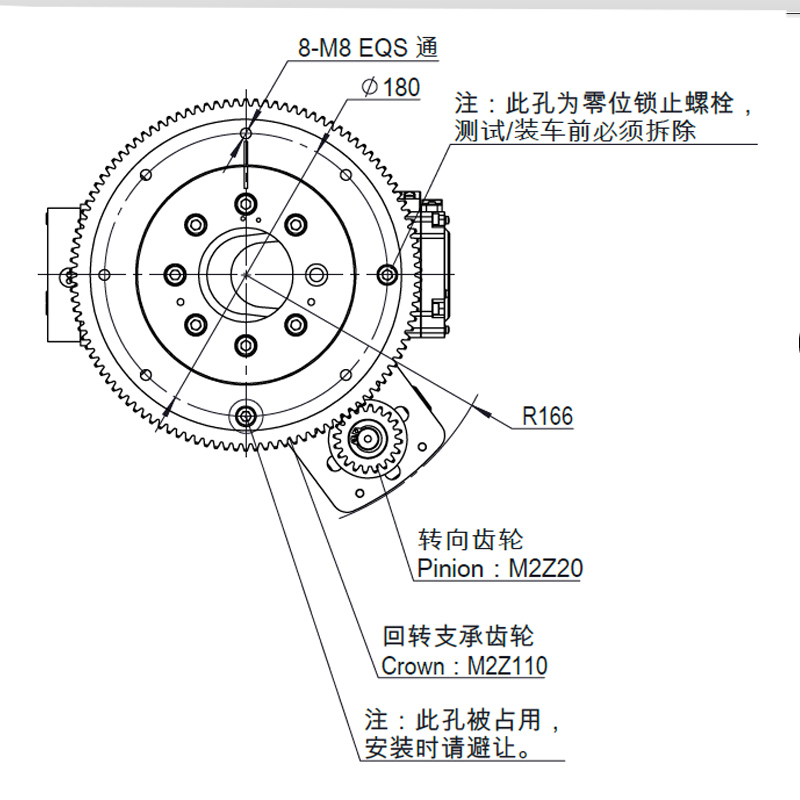

舵轮安装尺寸如图

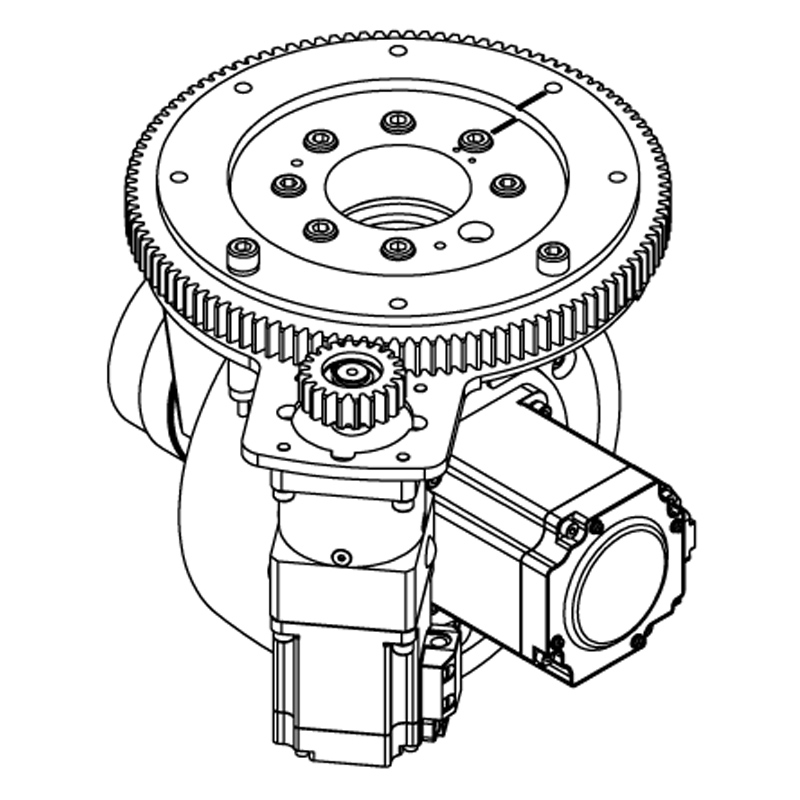

A3标准伺服款总成图
