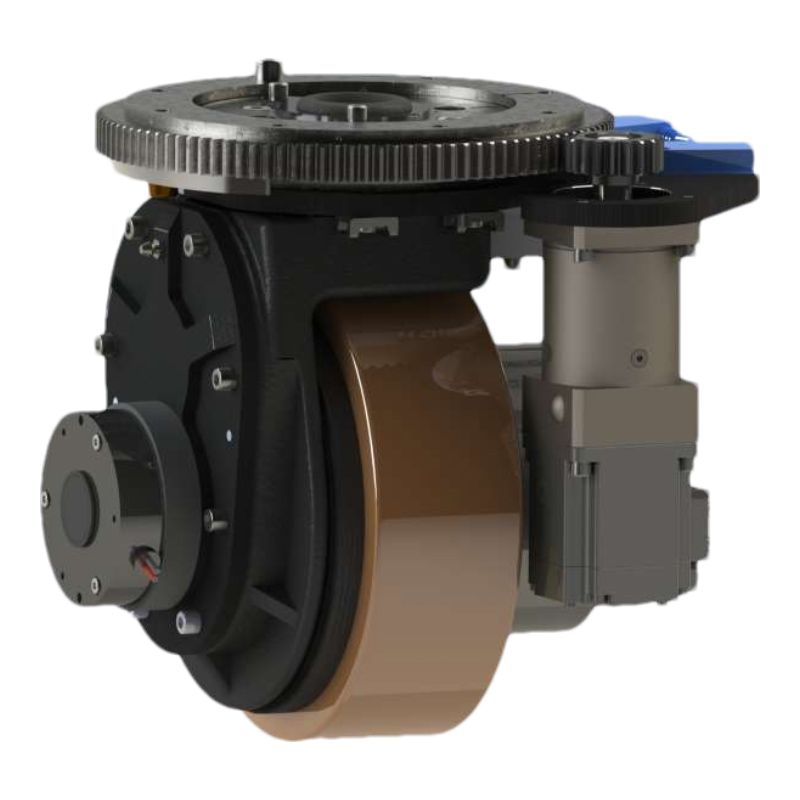

PhoenixPower PH210DS Series Horizontal Steering Wheel

产品能力范围:
Wheel diameter 210mm
Vertical load 1000kg
Driving wheel power 500W-1200W
Driving wheel torque MAX=235N.m
Driving wheel speed 0-5km/h
Driving wheel speed ratio 24.7
Steering motor power 100W-200W
Configurable motor type All types
A3伺服48V1100W
A4伺服48V1100W

A3标准伺服款配置   型号:PH210DS-A3-008-10

驱动单元
行走电机

inagv伺服电机 PVMN12611M3H1-L25-S25-3A

48V1100W4.2N.m2500rpm

行走电机IP等级IP65
行走电机自出线长动力0.1m/编码器0.1m
行走电机动力延长线PN-MOT-1100-*
行走电机制动器外置24VDC6N.m21W-15
行走电机制动器延长线 PN-BRA-*
行走电机编码器内置增量式2500线
行走电机编码器延长线PN-ENC-*
包胶轮聚氨酯210*70mm
驱动轮额定速度66.78m/min
驱动轮速比i=24.685
转向单元
转向电机

inagv伺服电机 PVML06002H3H3-M17

48V200W0.64N.m3000rpm

转向电机IP等级IP65,轴端IP54
转向电机自出线长动力0.5m/编码器0.5m
转向电机动力延长线PL-MOT-200-*
转向电机编码器内置多圈绝对值17bit
转向电机编码器延长线PL-ENC-*
最大转向速度81.82°/sec
转向减速机速比 i=40
转向机构速比 i=5.5
电子限位 ±125°行程开关XCMN2102L1
机械限位±135°
零位开关-
驱动器
行走电机驱动器inagv伺服驱动器 PLD2L-CAN7030B
行走电机驱动器通讯线PL-COM-1.0
转向电机驱动器inagv伺服驱动器 PLD2L-CAN7010B
转向电机驱动器通讯线PL-COM-1.0
驱动器调试线PL-PC-1.0
其他
产品减震机构-
产品耐温范围耐低温-20℃
产品防爆-
安全编码器-
工作制S2
单舵轮额定垂直负载800kg
单舵轮最大牵引重量3000kg
双舵轮最大牵引重量4800kg

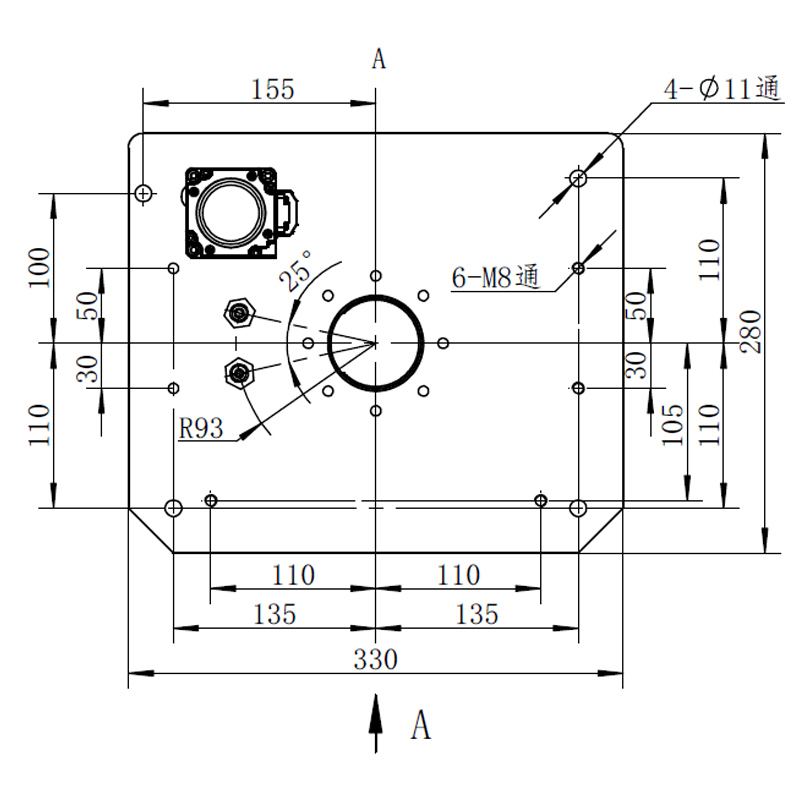

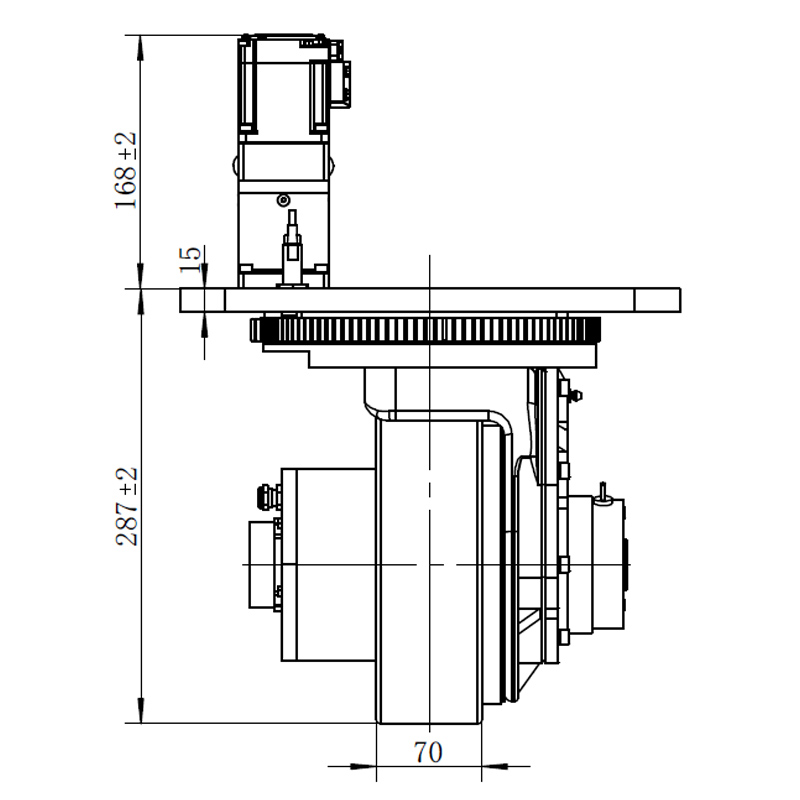

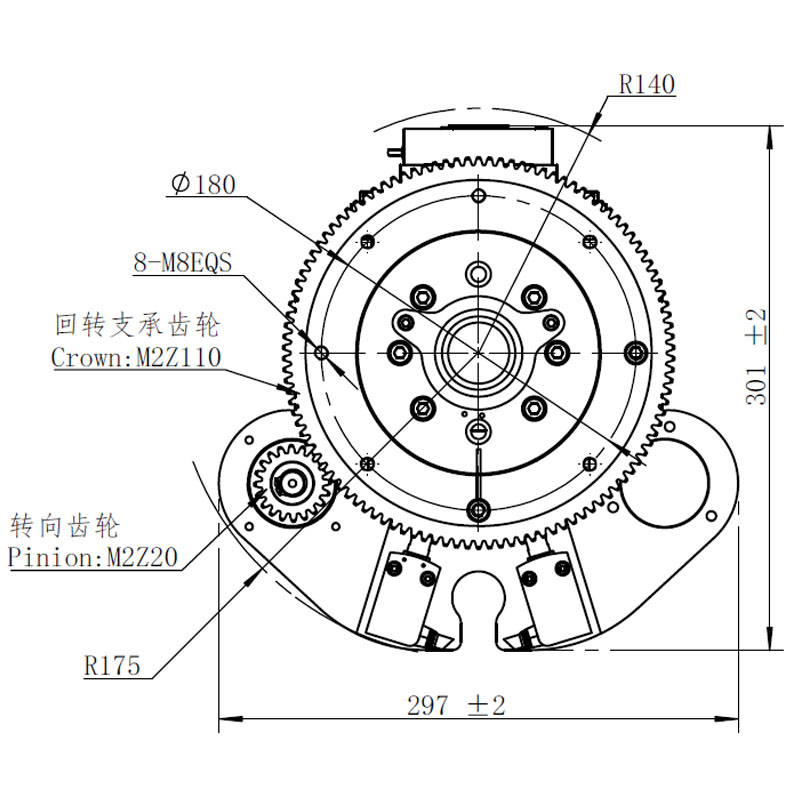

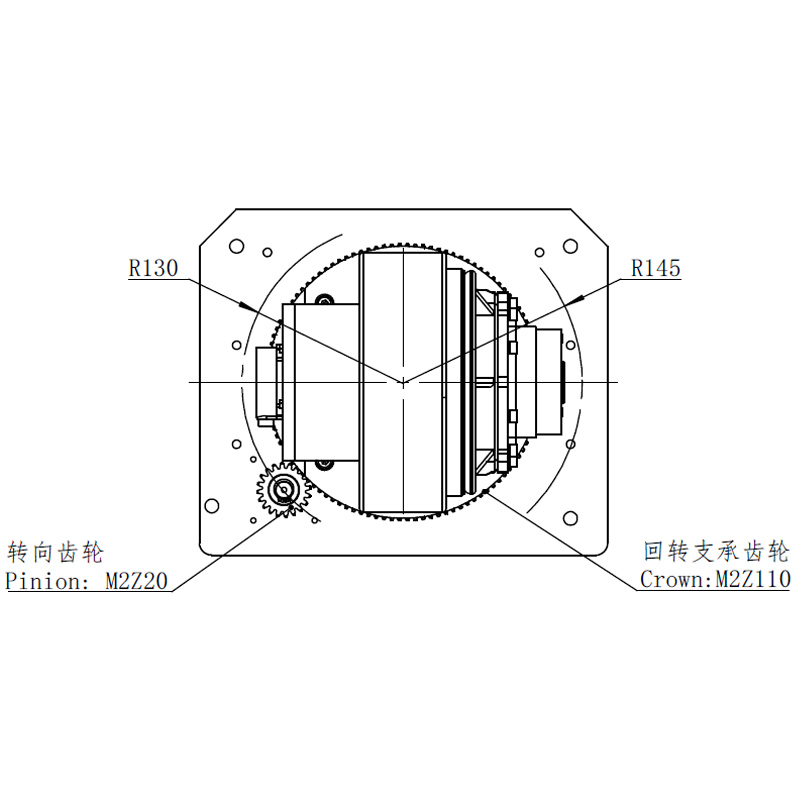

舵轮安装尺寸如图

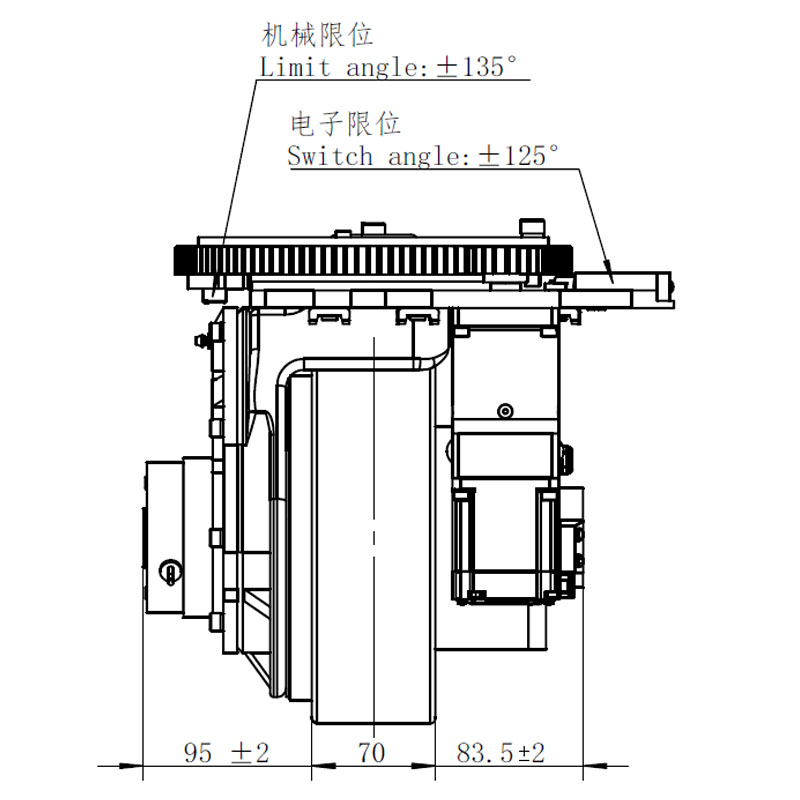

A3标准伺服款总成图



A4标准伺服款配置   型号:PH210DS-A4-001-00

驱动单元
行走电机

inagv伺服电机 PVMN12611M3H1-L25-S25-3A

48V1100W4.2N.m2500rpm

行走电机IP等级IP65
行走电机自出线长动力0.1m/编码器0.1m
行走电机动力延长线PN-MOT-1100-*
行走电机制动器外置24VDC6N.m21W-15
行走电机制动器延长线PN-BRA-*
行走电机编码器内置增量式2500ppr
行走电机编码器延长线PN-ENC-*
包胶轮聚氨酯210*70mm
驱动轮额定速度66.78m/min
驱动轮速比i=24.685
转向单元
转向电机

inagv伺服电机 PVML06002H3H3-M17

48V200W0.64N.m3000rpm

转向电机IP等级IP65
转向电机自出线长动力0.5m/编码器0.5m
转向电机动力延长线PL-MOT-200-*
转向电机编码器内置多圈绝对值17bit
转向电机编码器延长线PL-ENC-*
最大转向速度81.8°/sec
转向减速机速比i=40
转向机构速比i=5.5
电子限位±110°接近开关NPN常闭M12×1.0
机械限位±120°
零位开关
驱动器
行走电机驱动器inagv伺服驱动器 -
行走电机驱动器通讯线PL-COM-1.0
转向电机驱动器inagv伺服驱动器 -
转向电机驱动器通讯线PL-COM-1.0
驱动器调试线PL-PC-1.0
其他
产品减震机构-
产品耐温范围耐低温-20℃
产品防爆-
安全编码器-
工作制S2
单舵轮额定垂直负载800kg
单舵轮最大牵引重量3000kg
双舵轮最大牵引重量4800kg

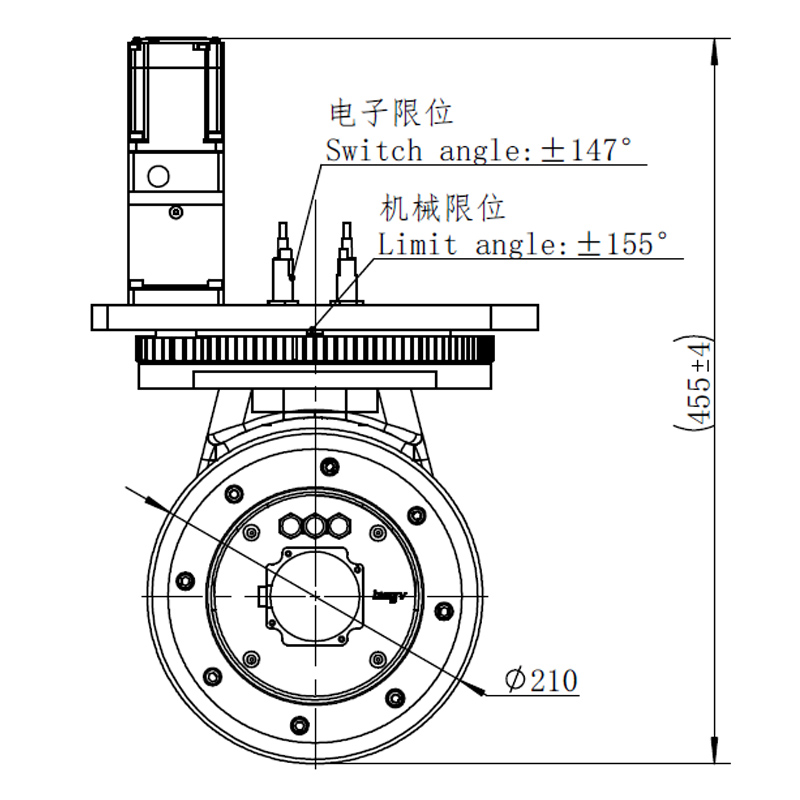

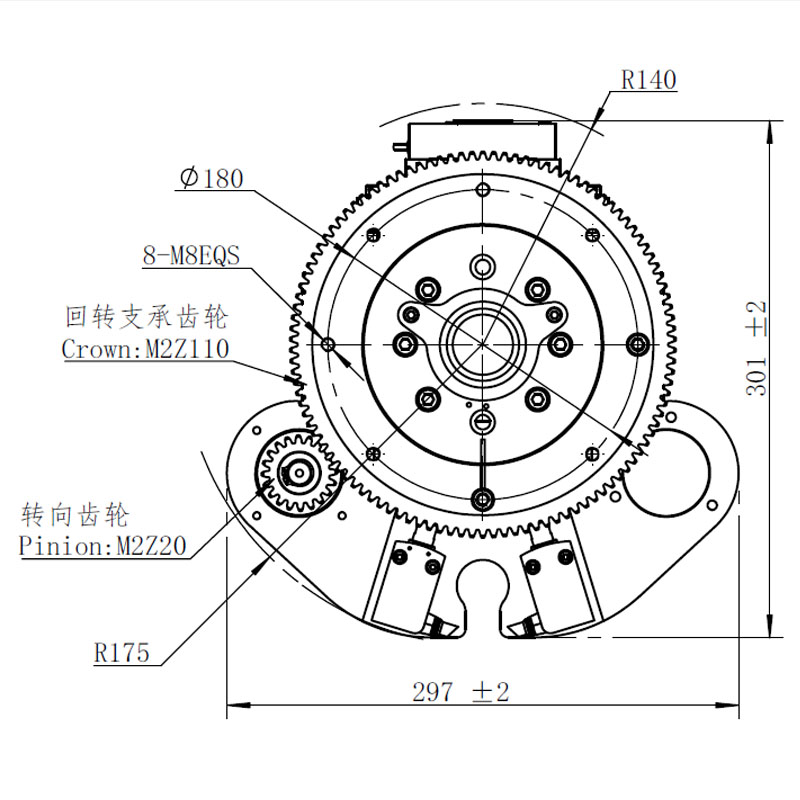

舵轮安装尺寸如图

A4标准伺服款总成图
